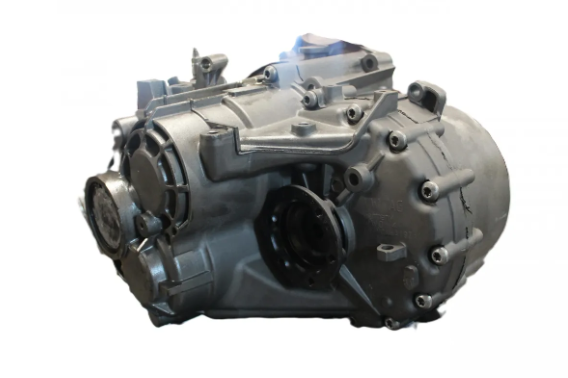

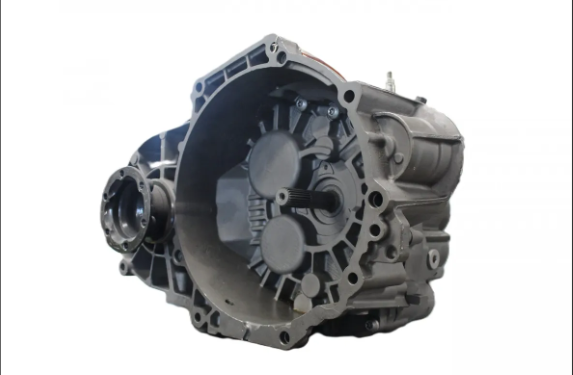

VOLKSWAGEN 02Q RHL GEARBOX

The 02Q RHL gearbox is a 6-speed manual transmission from the 02Q series, mainly found in Volkswagen Group vehicles. It is commonly paired with the 2.0 TDI diesel engines in various models. Here are some of the cars that typically came with the 02Q RHL gearbox: Volkswagen Golf Mk5 and Mk6 (2004–2012) – Often found in models equipped with the 2.0 TDI engine. Volkswagen Jetta Mk5 (2005–2010) – Used in TDI versions, particularly with 2.0-liter diesel engines. Volkswagen Passat B6 (2005–2010) – Available in models with the 2.0 TDI engine. Audi A3 8P (2003–2013) – Found in diesel variants, especially those with the 2.0 TDI engine. Seat Leon Mk2 (2005–2012) – Used in 2.0 TDI models. Skoda Octavia Mk2 (2004–2013) – Commonly paired with the 2.0 TDI engine. These models commonly feature the 02Q RHL gearbox, particularly in their 2.0 TDI versions, offering robust performance and reliability. Let me know if you need more information or have other questions.

1. Input Shaft Bearing Wear & Play

One of the widely reported issues with 02Q gearboxes is excessive play on the input shaft bearing.
This can allow movement of the input shaft relative to the case, which may:

• create noise in neutral or under load (especially around 2nd/5th gears),

• lead to increased wear of other components,

• eventually cause bearing to spin in the gearbox casting if worn badly.

2. Selector Fork & Synchromesh Wear

Wear or bending of the shift forks or gear synchros is common, especially under heavy use or high mileage. Symptoms include:

• difficulty selecting specific gears (often 1st, 2nd, 3rd),

• gears grinding when shifting,

• vague or stiff gear selection.

3. Rivets and Selector Shaft Fasteners

Some early 02Q units use rivet connections on selector mechanisms that are known to shear.
If these fail:

• gear selection can fail (vehicle won’t go into gear),

• you may find sudden loss of drive without other obvious symptoms

4. Cross‑Pin / Differential Internals

In the differential section of the gearbox, the small cross pin holding planetary/spider gears can break or come loose under high stress, often leading to catastrophic damage.

• HDV

• HVS

• KNQ

• KNU

• KNS

• KNY

• KZW

• JQN

• KPA

• KDU

• GRF

• GXC

• GNE

• FUQ / FWZ / HJR

• 02Q
