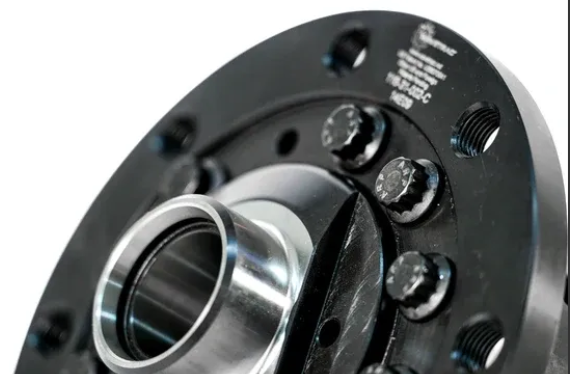

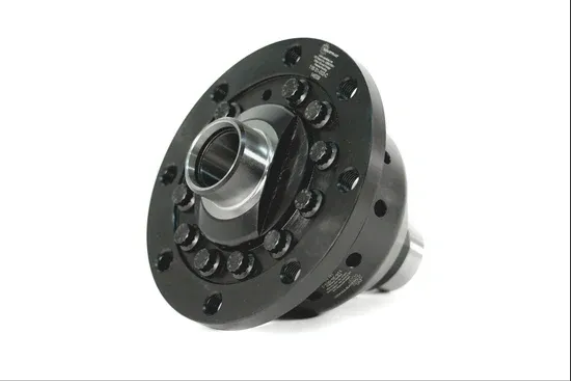

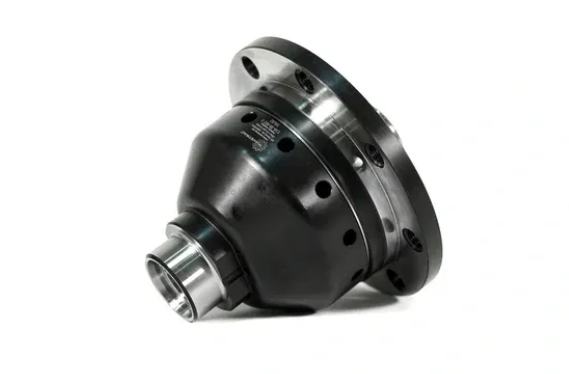

Wavetrac Differential for 02J/B/02S 2004 onwards

Fits Golf Mk4 1.8T/2.0 5MT Jetta MK4 1.8t/2.0 5MT Golf MK5 2.5L 5MT Jetta MK5 2.5L 5MT Golf MK6 2.0/2.5L 5MT Jetta MK6 2.0/2.5L 5MT Golf MK6 1.4TSI 6MT Seat Ibiza 1.4TSI 6MT   Simply put -  Wavetrac is the only gear diff on the market that does not lose all drive when one axle is unloaded.  Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise. We won’t go into torque bias ratios or the concept of how torque biasing diffs work at this point. Let’s get to how the Wavetrac affects performance: For example, you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive - is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel. Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall. Other benefits: Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. With the Wavetrac performance is consistent with the Carbon Fibre bias plates! Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs. ARP Bolts used throughout for superior faster reliability.  9310 steel gears run in billet or forged steel bodies.  Lifetime, transferable warranty Manufactured & Designed in the USA

1. Normal Torque-Biasing Behavior That Can Be Misinterpreted

Clicking / Clunk Sounds

• Some owners report a distinct “click,” clunk, or mechanical noise under light acceleration/deceleration or during torque transitions. This is often heard right after installation and can sound like a drivetrain issue.

• Many community discussions (even outside VW-specific threads) indicate that such noises can be normal helical LSD behavior as the preload/cam mechanism engages and unloads the wave plates — especially compared to an open diff or clutch-type LSD.

2. Perceived Lack of Drive in Near-Zero Load Conditions

One of the main advertised improvements of a Wavetrac over an open diff is better traction when a wheel unloads (zero/near-zero axle load). However:

• In some everyday driving or light load changes, the difference can feel subtle, leading owners to think it’s “not working right” when in fact the diff is behaving as torque biasing physics allow.

This isn’t a mechanical failure — just a driver expectation vs real-world behaviour mismatch.

3. Installation & Fitment-Related Complaints

Bolt/Fitment Issues

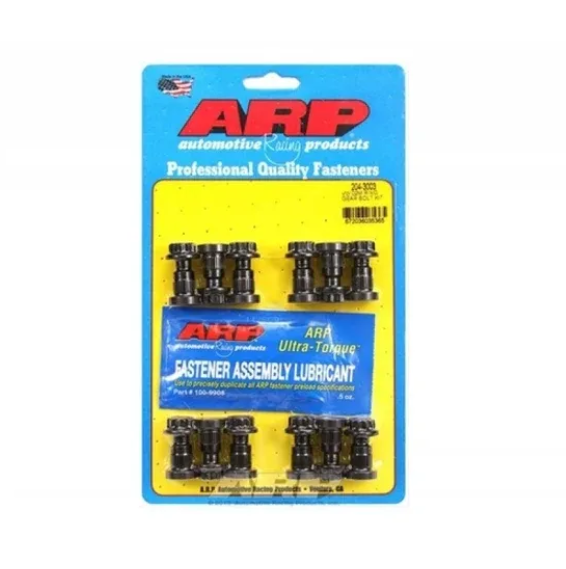

• Proper installation of a Wavetrac LSD into an 02J/02JB/02S trans requires removal of the stock diff’s riveted ring gear, then bolting on the Wavetrac unit with ARP hardware. Mistakes here can cause noise or misalignment that people mistakenly attribute to the LSD itself.

Need for Differential Bearing/Shim Kits

• Aftermarket kits for bearings and shims are often recommended to ensure correct preload and avoid issues. If not used or fitted incorrectly, internal lash and drive feel can be affected post-install.

4. Gear Oil Sensitivity

• Wavetrac requires appropriate gear oil — oils with certain friction modifiers (meant for clutch LSDs) can make helical LSDs behave less effectively because these diffs use friction between gears, not clutch packs. Wavetrac’s own advice is to use factory-specified oil and avoid additives that reduce friction.
