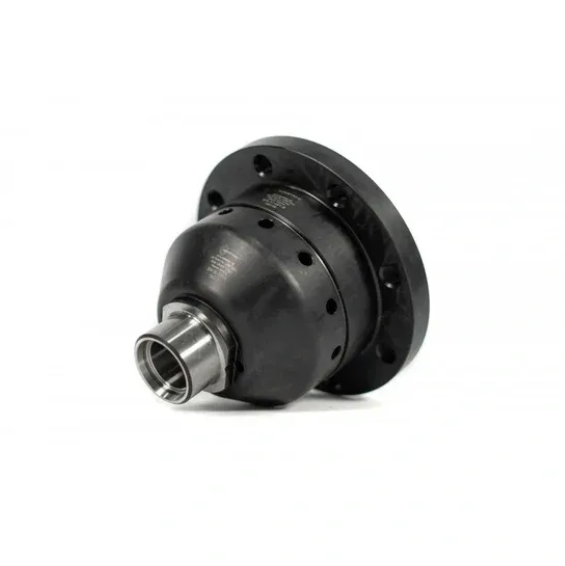

Wavetrac Differential For 0AM DQ200 7 speed dry clutch

Improve the traction and grip in all conditions on your DQ200 DSG with Wavetrac's market-leading Automatic Torque Biasing Limited Slip Differential, or ATB LSD. This Wavetrac Differential comes supplied with new ARP bolts.

Simply put - Wavetrac is the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise.

We won’t go into torque bias ratios or the concept of how torque biasing diffs work at this point. Let’s get to how the Wavetrac affects performance:

For example, you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive - is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel.

Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall.

Other benefits:

• Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. With the Wavetrac performance is consistent with the Carbon Fibre bias plates!
• Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs.
• ARP Bolts used throughout for superior faster reliability.
• 9310 steel gears run in billet or forged steel bodies.
• Manufactured & Designed in the USA

1. Normal Torque-Biasing Behavior Mistaken for Faults

Because the Wavetrac LSD is an Automatic Torque-Biasing (ATB) unit, owners sometimes interpret normal mechanical sounds or behaviour as problems:

• Clicking, thumping, or transient noises under load changes — gear-type LSDs like Wavetrac can make noises that drivers unfamiliar with torque biasing interpret as worn or faulty components — but these are often just normal engagement characteristics of the cam/block mechanism.

2. Wavetrac Installation Considerations Can Cause Perceived Issues

Aftermarket LSD installations — especially in DSG boxes not originally designed for them — can suffer from fitment or integration quirks:

• Axle spline alignment and fit tolerances: If the LSD isn’t perfectly mated to the output flange/axles, drivers can feel judder or vibration that’s actually from driveline misalignment rather than the differential itself.

• ARP bolt seating and ring-gear removal: Wavetrac installs require removing the stock ring gear and using bespoke hardware; improper installation here may lead to noise or movement that drivers attribute to the LSD internals.

3. Transmission (DQ200) Issues Can Be Mistaken for LSD Faults

Many of the most common complaints on 0AM/DQ200 VAG cars stem from the gearbox itself — and these complaints can easily be blamed on a newly fitted LSD because the symptoms overlap:

Mechatronic/Control Unit Failures

• Tank-pressure loss, failed valves, or hydraulic leaks inside the mechatronic unit can cause jerky shifts, loss of drive, limp mode or gear selection errors.

• If the DSG control struggles, drivers can feel inconsistent power delivery that might be misattributed to a diff when it’s actually the mechatronic unit.

Dry Clutch Wear & Engagement Problems

• Dry dual-clutch packs are known to wear prematurely or overheat in stop-start driving, causing judder and slip sensation — which drivers sometimes think is an LSD issue.

• This phenomenon is especially noticeable in low-speed traffic or repeated launch situations.

General DQ200 Behaviours

• Juddering, strange engagement sensations and transmission clamour in early gears are characteristics of the DQ200 dry-clutch design, not the differential — but owners sometimes blame the LSD or diff install because it appears after the upgrade.
