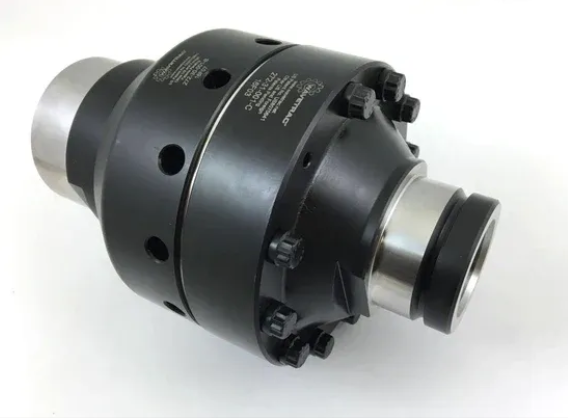

Wavetrac Differential for VW Golf R32 Rear

 Simply put - Wavetrac is the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise. We won’t go into torque bias ratios or the concept of how torque biasing diffs work at this point. Let’s get to how the Wavetrac affects performance: For example, you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive - is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel. Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall. Other benefits: Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. With the Wavetrac performance is consistent with the Carbon Fibre bias plates! Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs. ARP Bolts used throughout for superior faster reliability. 9310 steel gears run in billet or forged steel bodies. Manufactured & Designed in the USA WAVETRAC: Smooth is Fast The beauty of the Wavetrac is that it is ideally suited to high performance road cars that see track use. It is very strong, yet transparent to both driver and traction control electronics during regular driving. On the track or in spirited road use, it provides drive to both wheels without the handling issues that traditional clutch type diffs create (there is no tendency to push/understeer with a Wavetrac). The Wavetrac outperforms other gear type differentials because unlike them, it won't lose drive when one axle is unloaded (which happens more often than you'd think). Lastly, one of the most underrated benefits of the Wavetrac is its smooth delivery of power near the limit. Its patented design makes for a very predictable, smooth addition of power when you need it most - when things are at their limits: on the edge of traction mid-corner and using throttle to keep it there; or coming into a corner a little hot, but quickly back on it to maintain exit speed... These situations are often subjective to the driver, but the benefit can be felt. The Wavetrac makes you faster because it lets you drive with confidence. Smooth is fast.

Misdiagnosed Issues Due to Surrounding Components

One of the biggest patterns isn’t Wavetrac breaking — it’s owners mistaking pre-existing rear diff or Haldex problems for LSD faults:

Haldex / Rear Diff Failures on R32

• Owners report rear differential and Haldex unit failures on stock R32 setups (non-Wavetrac) — sometimes due to incorrect servicing (wrong oil type/quantity) or drivetrain issues. In one club thread a rear diff “blew up” after a Haldex/gearbox service, likely due to wrong oil placement between chambers, causing catastrophic failure.

• Grinding, rumbling, or violent shaking at speed followed by oil leakage has been linked to rear diff/Haldex unit failure, not necessarily the LSD itself.

2. Noise (Whine / Clunk) Interpreted as a Fault

Wavetrac’s torque-biasing cam action internally can produce noises that drivers unfamiliar with gear LSDs think are faults:

• Clicking, clicking, “clunk,” or mechanical sounds during torque transitions (throttle on/off) are frequently reported with Wavetrac and other helical LSDs and are normal behaviour of the preload mechanism.

• On some cars (not specifically R32 but general for helical diffs), similar noises are reported and later attributed to zero-load engagement characteristics rather than a mechanical failure.

3. Incorrect Gear Oil / Fluid Mixups

The rear diff/Haldex assembly has multiple chambers and requires specific oil in each:

• There are reports on R-platform cars where mechanics put the wrong oil in the diff or Haldex unit during service, leading to differential catastrophic failure which then gets blamed on the aftermarket replacement or LSD.

• Wavetrac’s own guidance stresses that using incorrect oil additives (especially those designed for clutch LSDs) can reduce performance or cause unexpected behaviour because the unit uses internal friction directly between gears to bias torque.
