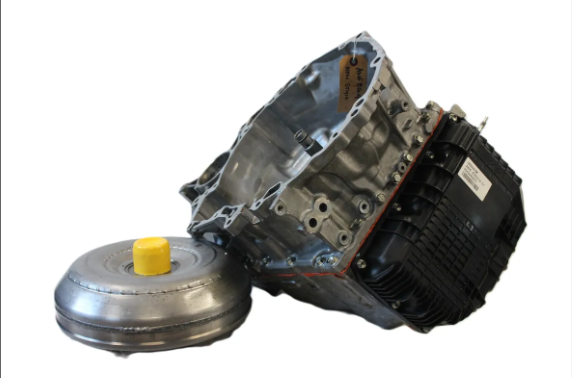

AWF8G45 - BMW/Mini: 1 Series (F40), 2 Series Active Tourer/Gran Tourer (F45, F44, F46), X1 (F48 LCI), X2 (F39), Mini Clubman (F54), Mini Countryman (F60)

BMW AWF8G45

Applications - BMW/Mini: 1 Series (F40), 2 Series Active Tourer/Gran Tourer (F45, F44, F46), X1 (F48 LCI), X2 (F39), Mini Clubman (F54), Mini Countryman (F60).

Diagnostic Fault Codes-P0711 / P0712 / P0713/P0715 / P0716 / P0717/P0720 / P0721 / P0722 / P0723

1. Harsh / Jerky Shifts

One of the most frequently reported behaviours — especially when the gearbox is cold or hasn’t had proper fluid service — is harsh upshifts and downshifts, or jerky gear changes. This can feel like a “kick” between gears.

2. Torque Converter Shudder or Lock‑up Problems

The torque converter clutch can wear or fail to engage smoothly, leading to shuddering or vibration around cruising speeds (e.g., ~30‑50 mph), especially if fluid quality has degraded.

3. Fluid Leaks

Leaks are not uncommon on high‑mileage or older ZF 8HP gearboxes. They can lead to low fluid levels and subsequent pressure/hydraulic problems.

4. Mechatronic / Valve Body Faults

The mechatronic unit (electronic/hydraulic control module inside the gearbox) is a frequent source of issues. When solenoids, valves, or pressure regulators malfunction you can see:

• Delayed or inconsistent shifts

• Limp (failsafe) mode

• Fault codes stored

• Drive refusal in certain gears

5. Overheating & Pressure Loss

Because the 8HP has an advanced torque converter and hydraulic controls, excess heat or low pressure (from leaks, load, towing, fluid degradation) can trigger limp mode, harsh shifts, or warnings.

6. Software / Control Adaptation Issues

BMW sometimes uses software and adaptation learning routines to smooth shifts. Improper adaptation after fluid service or updates can contribute to rough behaviour until reset/re‑learned.
