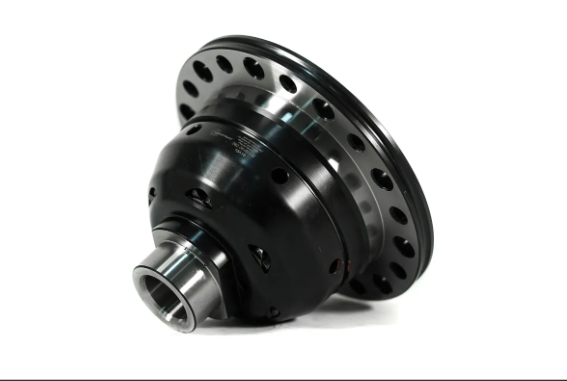

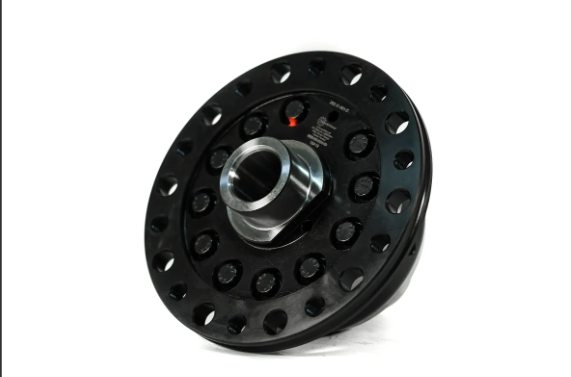

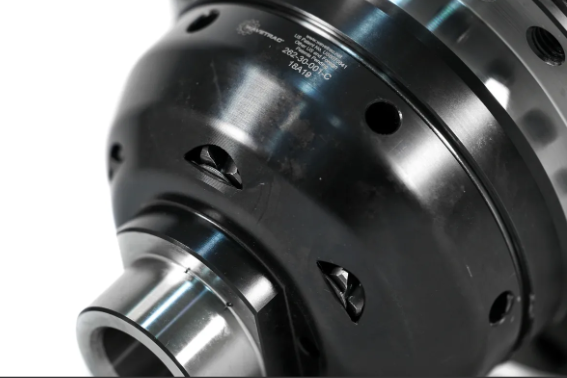

Wavetrac Differential for Mini Cooper S 6MT 2001>

Simply put - Wavetrac is the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise.

We won’t go into torque bias ratios or the concept of how torque biasing diffs work at this point. Let’s get to how the Wavetrac affects performance:

For example, you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive - is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel.

Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall.

Other benefits:

• Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. With the Wavetrac performance is consistent with the Carbon Fibre bias plates!
• Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs.
• ARP Bolts used throughout for superior faster reliability.
• 9310 steel gears run in billet or forged steel bodies.
• Manufactured & Designed in the USA

1. Fitment & Tolerance Problems

One of the most commonly reported issues with Wavetrac diffs on Mini Cooper S transmissions isn’t a mechanical failure — it’s fitment/compatibility trouble during installation:

• At least some owners have reported axle engagement problems, where an aftermarket axle would not fully slide into the new Wavetrac diff even though it fit the OEM or other diffs. Wavetrac techs have occasionally stated the unit itself is correct, suggesting compound tolerance issues between the differential and certain aftermarket axles.

2. Normal Torque‑Biasing Noises Mistaken for Faults

Wavetrac LSDs use a patented wave/cam mechanism to preload internal gearsets, and this can produce unusual but normal noises:

• Some owners describe a single “click” or clunk sound when accelerating or decelerating as torque loads change.

• This sound can come from the differential area and may be interpreted as a problem by drivers unfamiliar with torque‑biasing LSD behavior.

3. Rare, Anecdotal Reports of Machining / Tolerance Issues

While not widespread, some owner posts allude to machining defects or tolerance mismatches on early units or specific batches:

• One Mini owner wrote about an R56 Wavetrac that apparently had tolerance issues requiring careful shim work or fitment solutions.

Wavetrac Differential Codes for Mini Cooper S 6MT-56.309.190WK
