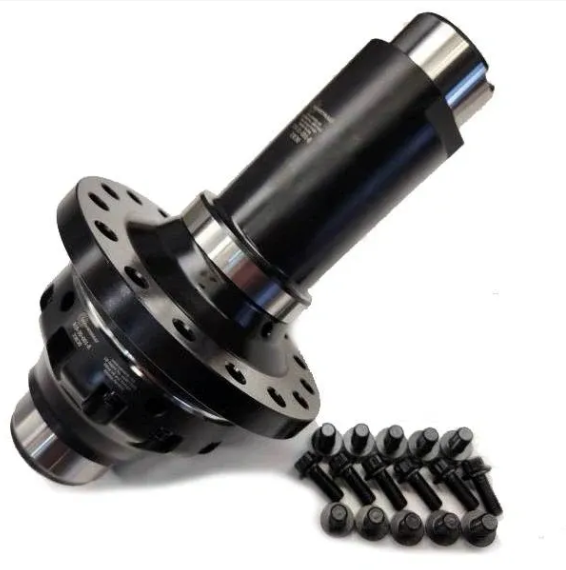

Wavetrac Differential For TTRS/RS3 Rear

 Simply put - Wavetrac is the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise. We won’t go into torque bias ratios or the concept of how torque biasing diffs work at this point. Let’s get to how the Wavetrac affects performance: For example, you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive - is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel. Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall. Other benefits: Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. With the Wavetrac performance is consistent with the Carbon Fibre bias plates! Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs. ARP Bolts used throughout for superior faster reliability. 9310 steel gears run in billet or forged steel bodies. Manufactured & Designed in the USA WAVETRAC: Smooth is Fast The beauty of the Wavetrac is that it is ideally suited to high performance road cars that see track use. It is very strong, yet transparent to both driver and traction control electronics during regular driving. On the track or in spirited road use, it provides drive to both wheels without the handling issues that traditional clutch type diffs create (there is no tendency to push/understeer with a Wavetrac). The Wavetrac outperforms other gear type differentials because unlike them, it won't lose drive when one axle is unloaded (which happens more often than you'd think). Lastly, one of the most underrated benefits of the Wavetrac is its smooth delivery of power near the limit. Its patented design makes for a very predictable, smooth addition of power when you need it most - when things are at their limits: on the edge of traction mid-corner and using throttle to keep it there; or coming into a corner a little hot, but quickly back on it to maintain exit speed... These situations are often subjective to the driver, but the benefit can be felt. The Wavetrac makes you faster because it lets you drive with confidence. Smooth is fast.

1. Fitment & Custom Machining Requirements

Unlike plug‑and‑play diffs, the RS3 / TTRS rear Wavetrac LSD requires custom machining of the factory welded ring gear and differential carrier to install. This can lead to:

• Improper machining or fitment problems if the ring gear isn’t separated and bolted correctly, causing noise or premature wear.

• Significant installation time and cost — labour plus custom work can far exceed the price of the diff alone.

2. Noise / Vibration Misinterpreted as Faults

A common theme with high‑performance helical ATB diffs (like Wavetrac) in general is:

• Clicking, clunking, or mechanical noises under throttle changes or at low speeds — especially during zero or low load events — which owners sometimes think are “faults,” but are actually normal torque‑biasing behaviour of the helical/ATB design.

3. Expectations vs. Behaviour — Not a Clutch‑Type Lock

• Some drivers expect clutch‑style “full lock” behaviour like a plate LSD. Wavetrac is gear‑type / automatic torque biasing (ATB), so it behaves differently — it never fully locks like a clutch LSD, just biases torque.

• In certain aggressive or very low traction situations, this can feel like the diff isn’t doing anything, even though it’s operating as designed.

4. Rear Differential / Haldex System Complexity

While not a Wavetrac‑specific flaw, community reports from RS3 owners indicate that rear diff/Haldex systems in AWD Audis can have their own noise and durability issues, even with OEM rear diffs, due to complex interaction with Haldex controls and fluid. Improper servicing can cause fluid mix issues, noise, or wear, which may be mistaken for a Wavetrac fault when a new LSD is installed.

5. Installation‑Dependent Warranty and Support Issues

Some owners in forums have noted that:

• If the diff is modified from stock (machining ring gear), Wavetrac may be less flexible with warranty repairs on that specific assembly because it’s no longer completely stock.

• Limited community experience data exists because this rear LSD is a relatively rare aftermarket item compared with more common 2WD/4WD front diffs, so documented fault patterns are mostly anecdotal rather than systematic.
